Rotary Table & Lazy Susan Conveyors

Here at UPM we have developed various different sizes of rotary tables/lazy susans to cater for the accumulation of product, allowing operators time to inspect and pack.

We have included as standard a variable speed control that offers a range of 2 to 7 RPM. This is together with a choice of outer ring heights and cut outs, which cater for in and out feed conveyors. These help to assist the transfer of products easily.

The rotary table/lazy susan top plate can be made from High Molecular Weight Polyethylene (HMWPE) or stainless steel. These are best for ease of access for clean down, yet totally enclosed for operator safety. A choice of product guides are available ranging from a simple arm to divert product to the centre of the table, through to an overhead product diverter ensuring ‘first in first out’ principal.

We can integrate the rotary table/lazy susan into an existing system or offer a total solution of product handling. Get in touch for more information on 01753 548801.

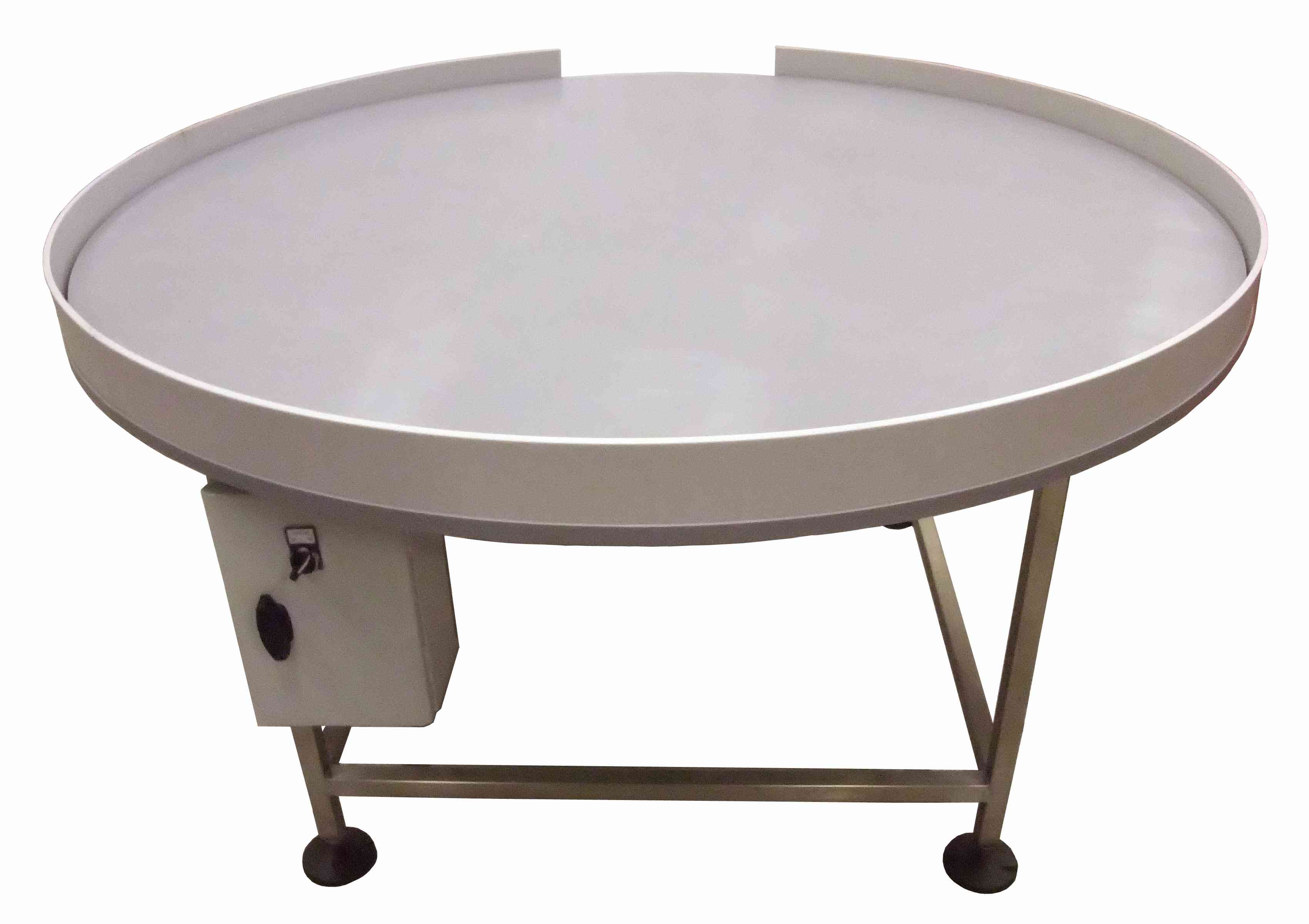

Rotary Table - Standard Model

Finger or hand trap point None
Disc Diameter 0.5m up to 2m
Disc material GREY HMWPE
Frame material 304 Stainless steel
Outer ring material GREY HMWPE
Articulated foot pads PA6 100mm diameter bolt down
Power Supply 1ph 240v 50hz
Control Variable speed inverter
Disc rotation 5-8 rpm
Height from floor to disc 800 mm +50mm adjustment

Rotary Table Options

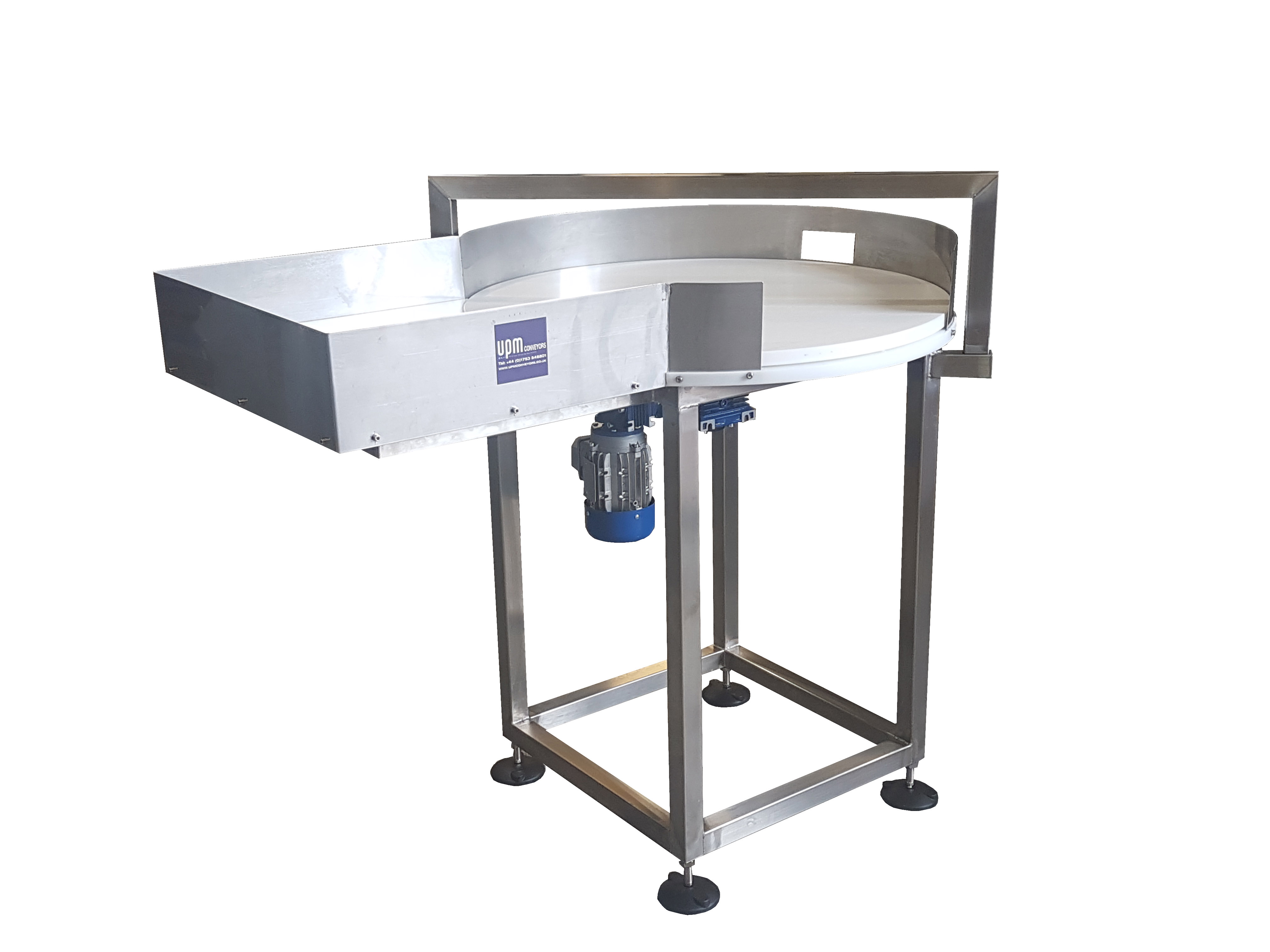

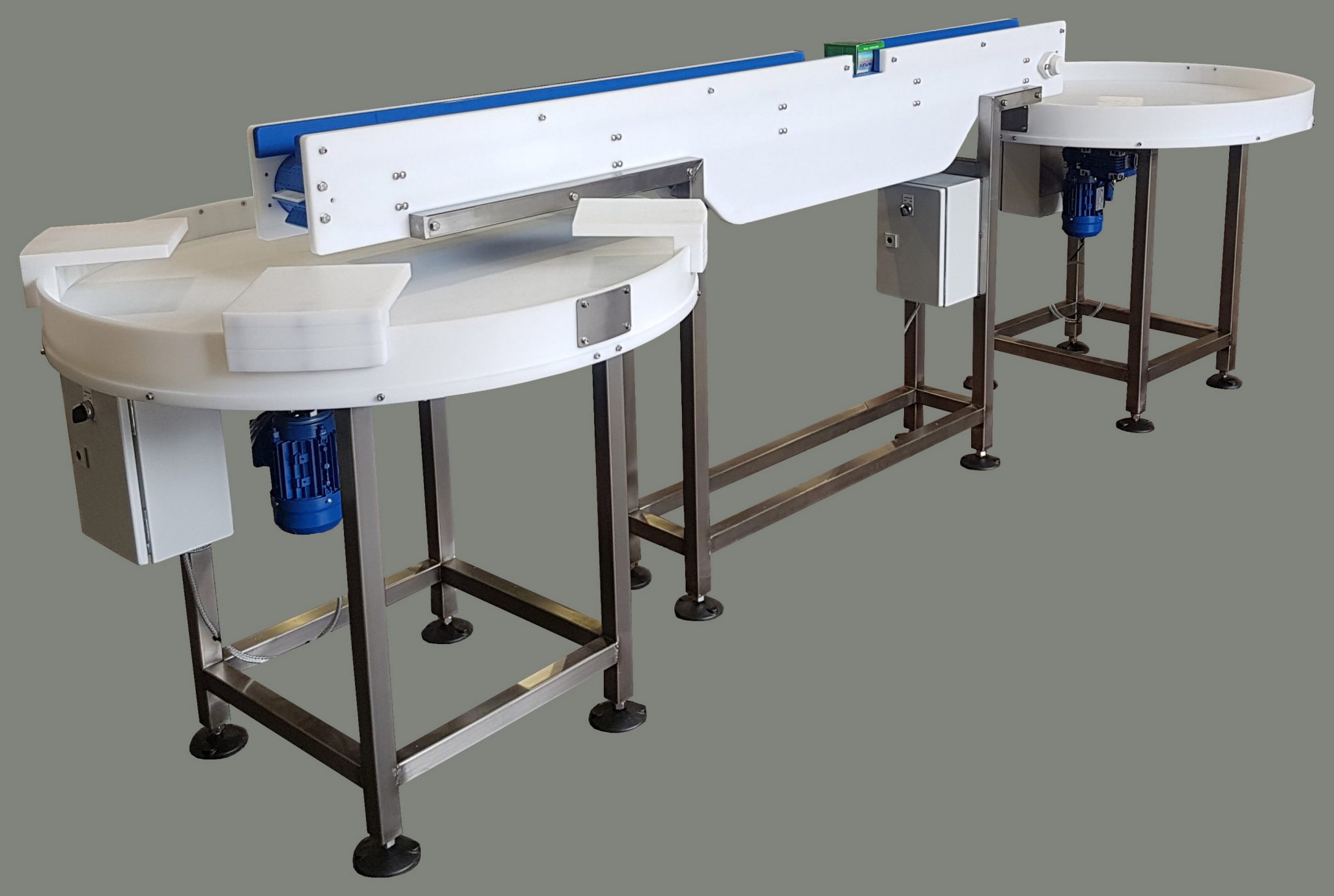

  • In-feed belt conveyors - Swan neck, angle or horizontal
  • 3PH 400V 50Hz Fixed rpm Manual motor starter control
  • Outer ring cut out - dimension to suit application

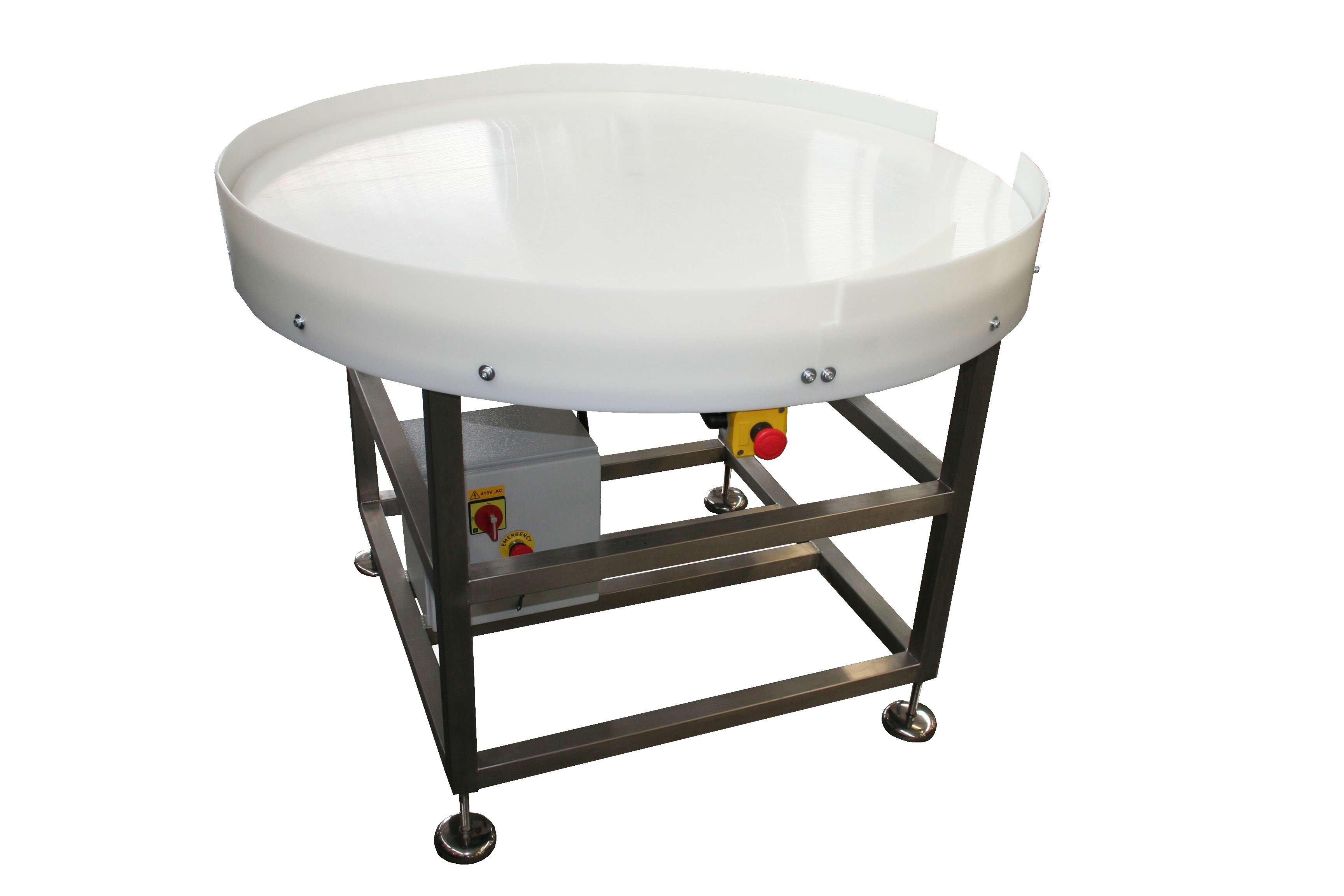

  • Emergency stop buttons
  • In and out feed deflector plates
  • Lockable 100mm diameter castors

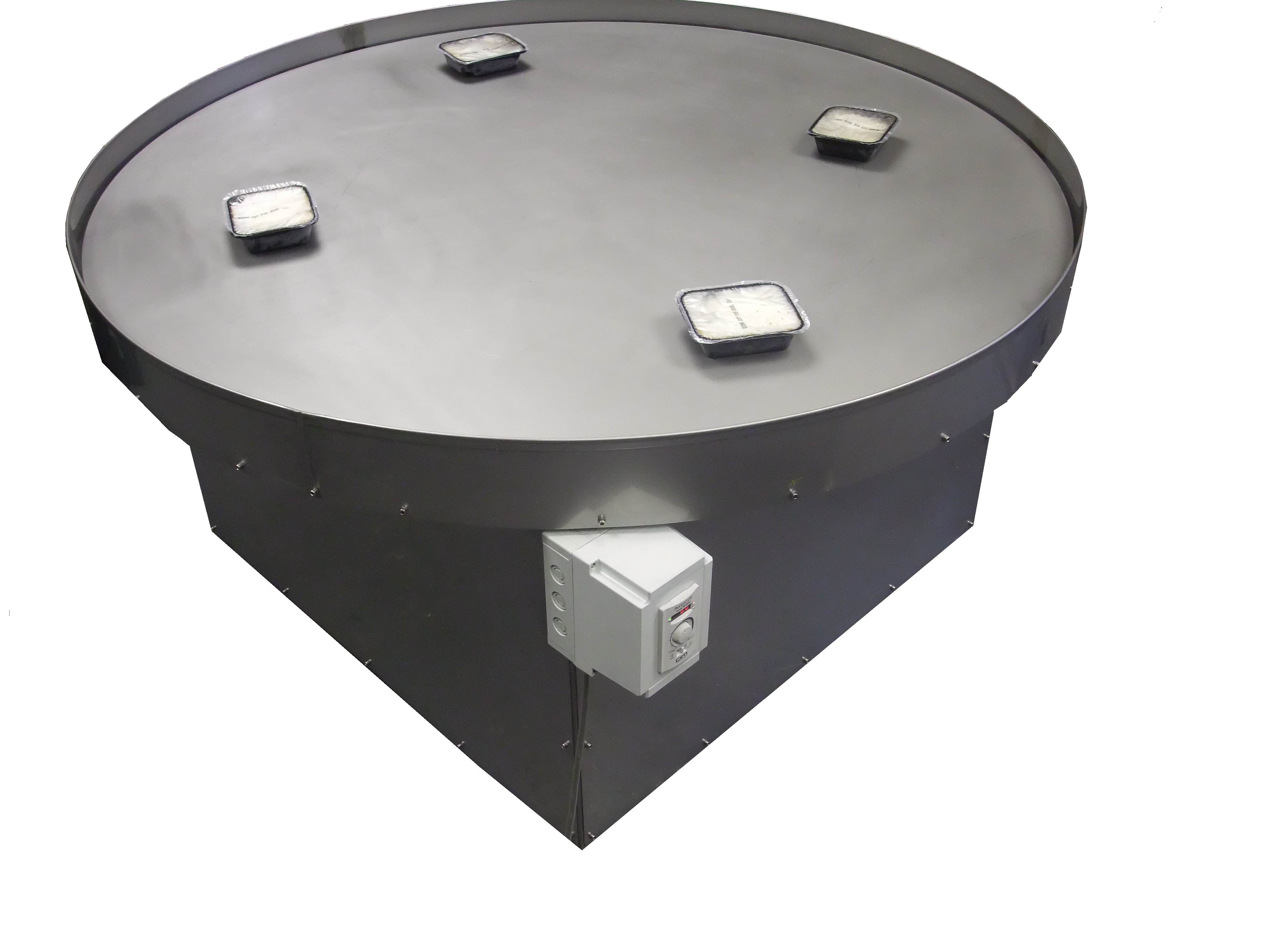

  • Support frame panelled with 304 stainless steel
  • Stainless steel foot pads
  • Stainless steel rotating disc
