Radius Conveyors

We offer a range of radius conveyors which may require only a few degrees of off-set to allow a conveyor to fit into an existing system, through to 90 degrees. This can be incorporated into a swan neck conveyor, or a full 360 degree carousel as part of a central stand alone system or integrating to a turn key package. This package has in-feed and out-feed conveyors for a workstation employing several operators for inspection and packing of product.

The conveyor side members can be manufactured from stainless steel or High Molecular Weight Polyethylene (HWMPE ). Ensuring quick belt removal for ease of clean down, completed by manually operated tension release arms operating via the top dead centre logic. Allowing all aspects of the conveyor to be cleaned, without the need for special tools. This is a direct benefit to the operator in ease of maintaining a high care area, particularly important for food applications.

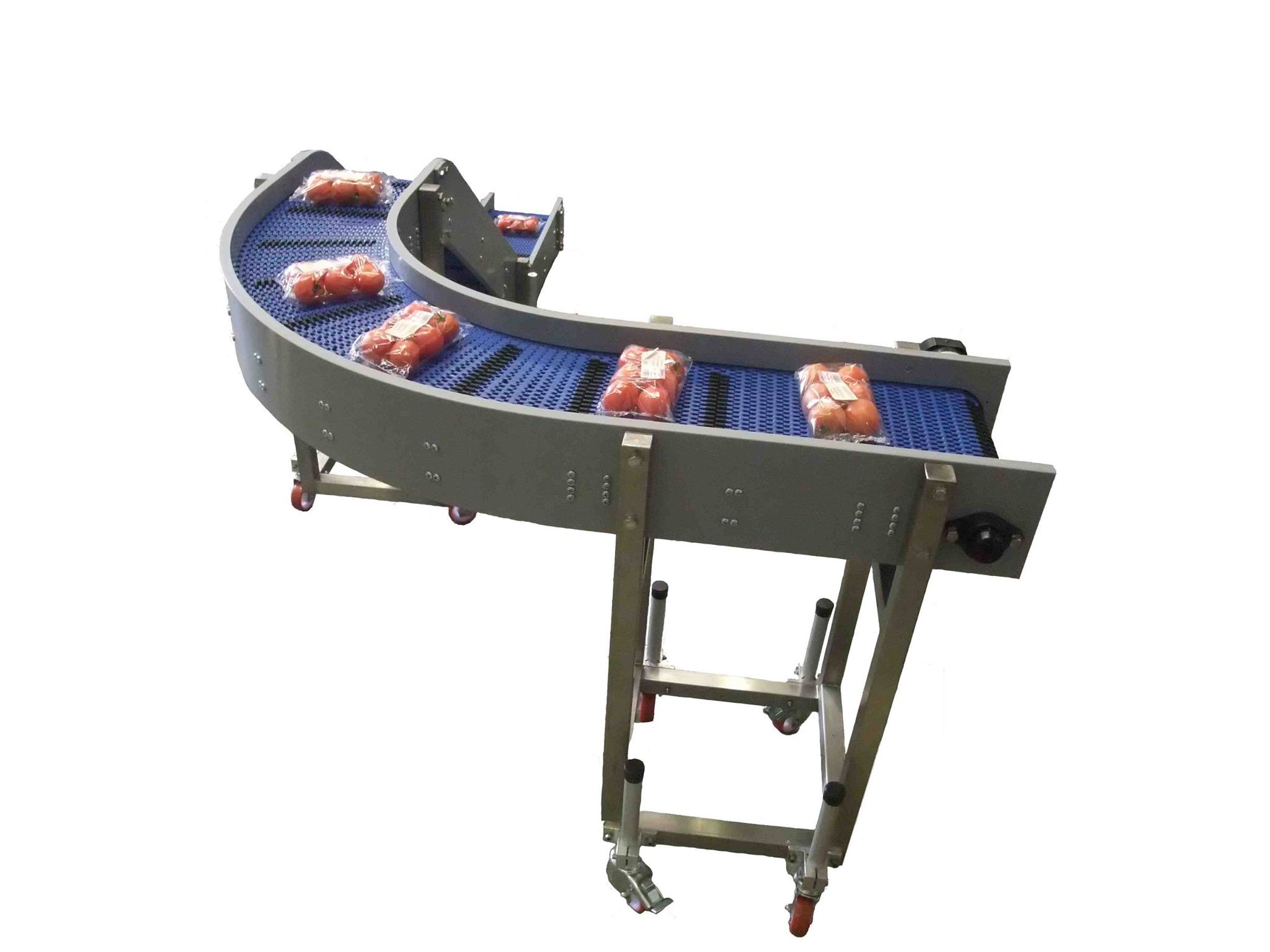

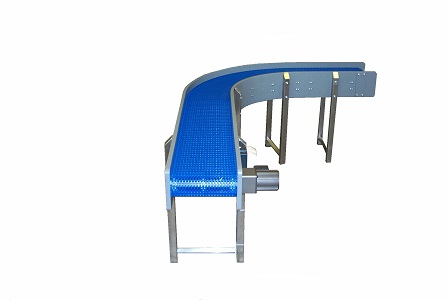

90-Degree Radius & Swan Neck Conveyor

  • Transporting packets at a rate of 70 per minute from a bagging machine to a check weigh system
  • 100mm infeed to 1100mm discharge height
  • 28-Degree incline angle
  • 90-Degree radius turn
  • Food approved link belt with rubber grip
  • Quick belt removal for easy clean down
  • Food approved conveyor sides in HMWPE
  • 304 Stainless steel support frame
  • 1ph 240V Variable speed controller

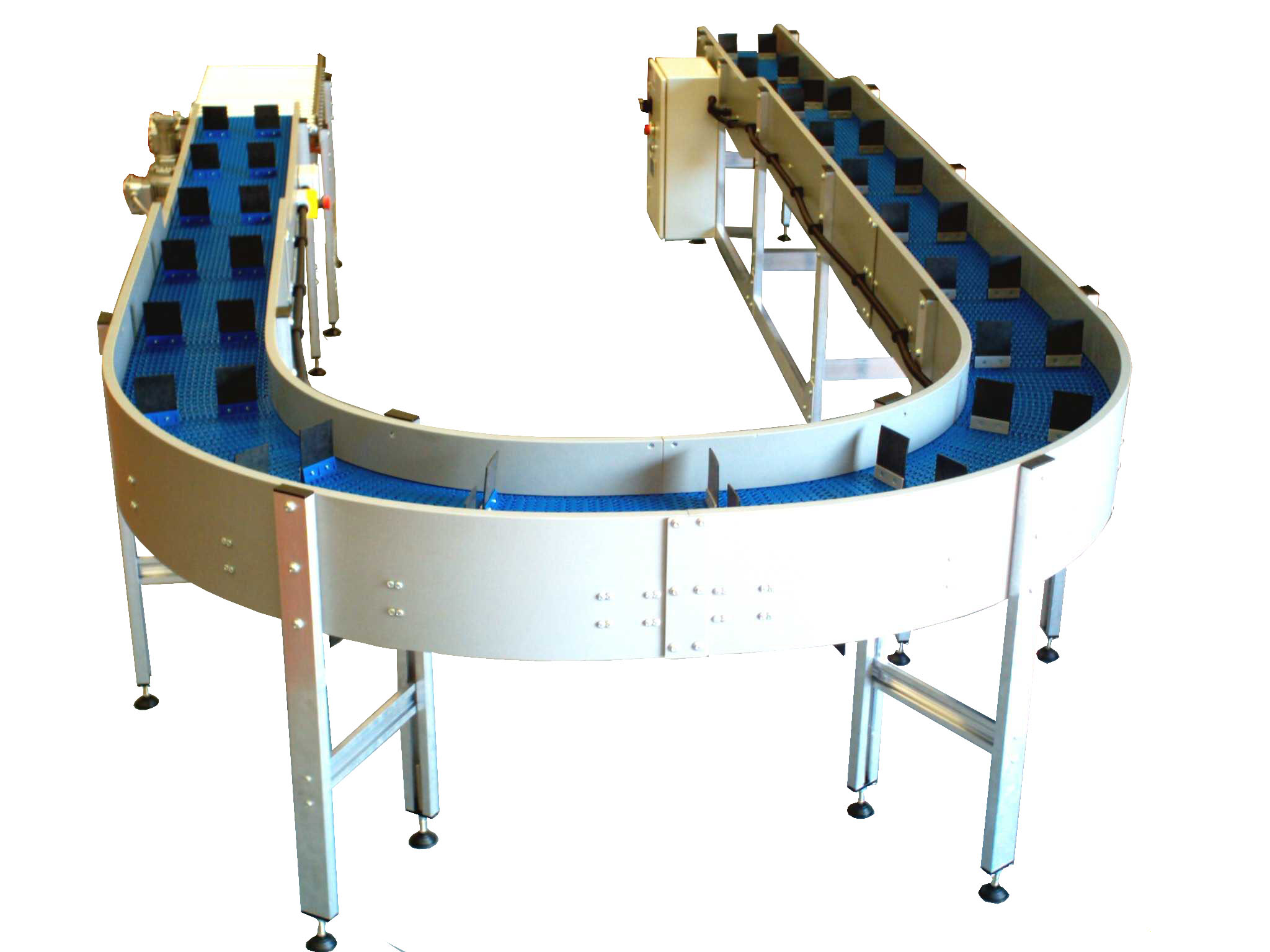

360-Degree Carousel Conveyor

  • Transporting trays of turkeys to a number of operator stations for preparation and packing
  • 800mm height with adjustable foot pads
  • Food approved link belt driven on sprockets
  • Quick belt removal for easy clean down
  • Food approved conveyor sides in HMWPE
  • 304 Stainless steel support frame
  • Single drive system with an inverter
  • Low voltage E/stop circuit

360-Degree Carousel & Horizontal Conveyor

  • Transporting packets of spice mix to a number of operator stations for packing
  • Central conveyor for empty box storage
  • Food approved link belt driven on sprockets
  • Quick belt removal for easy clean down
  • Food approved conveyor sides in HMWPE
  • 304 Stainless steel support frame
  • Single drive system with an inverter
  • Fold down operator stations

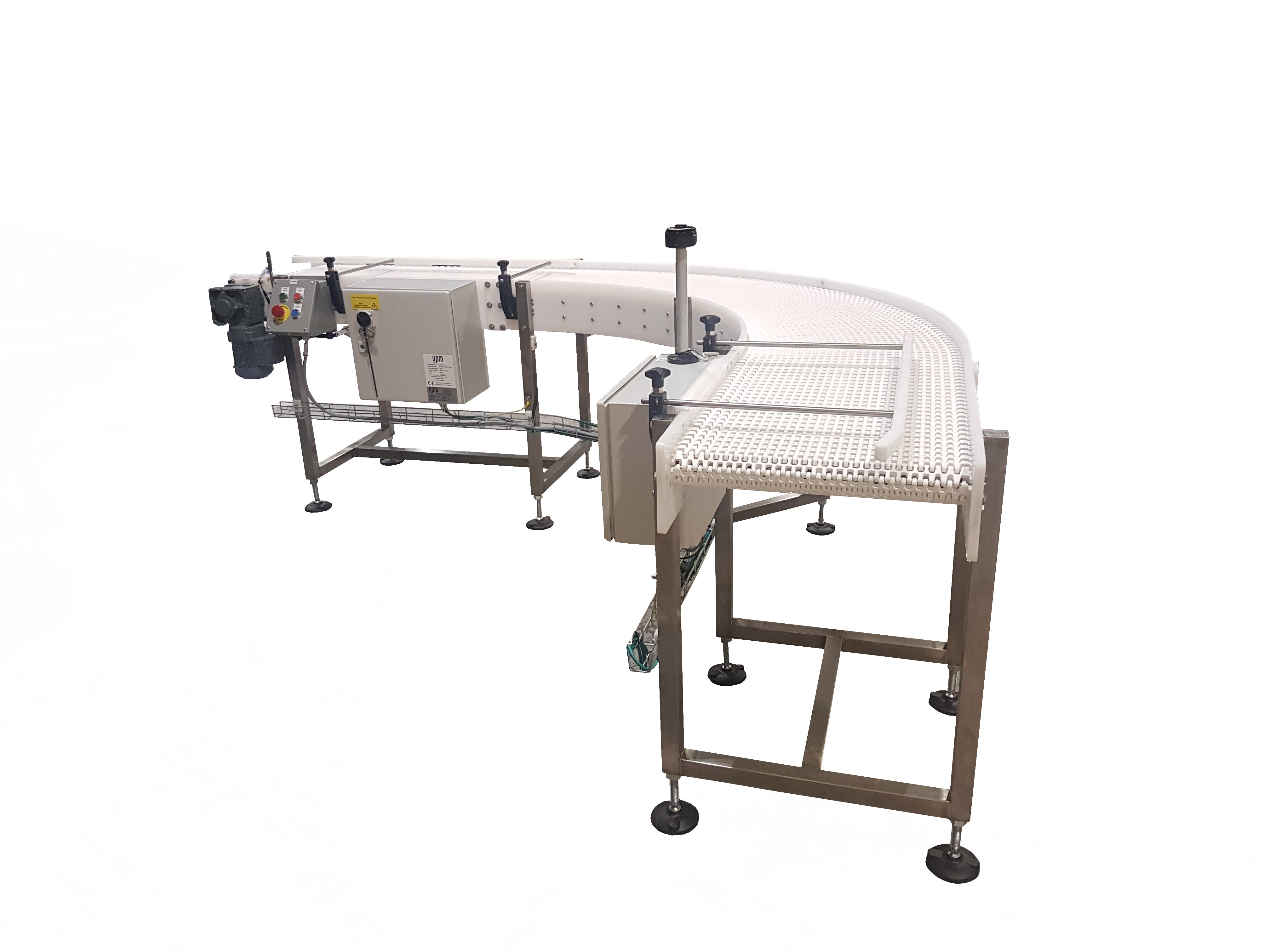

Double 90-Degree Radius Conveyor

  • Transporting packets from sealer to print labeller
  • Link belt driven on sprockets with 30mm diameter tail and nose bar
  • Quick belt removal for easy clean down
  • Food approved conveyor sides in HMWPE
  • 304 Stainless steel support frame
  • Single drive system with an inverter

double bend food conveyor
