Weighing, Counting & Box Filling Conveyors

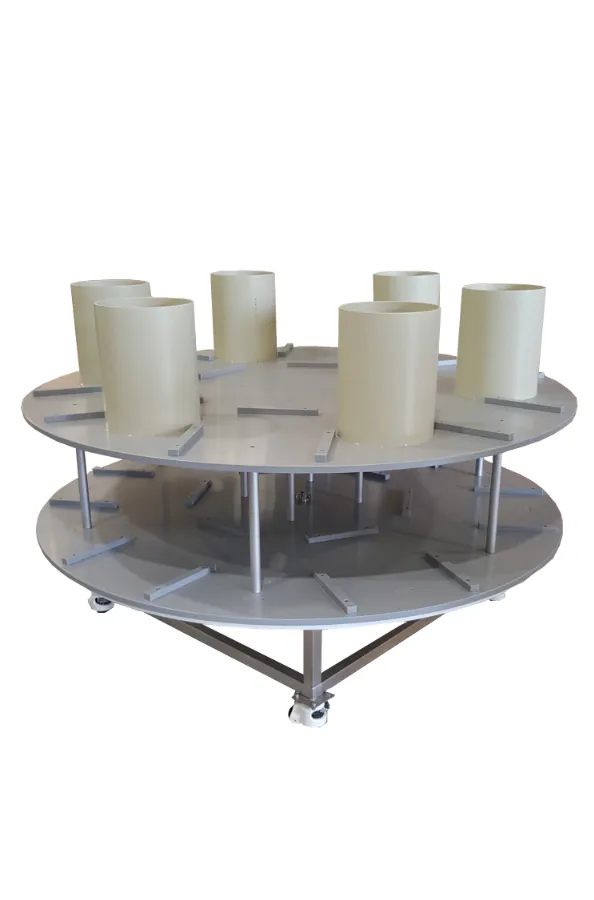

CF991 Rotary Box Filler

  • No mechanical adjustment required press ’SET’ key and position is recorded
  • 10 positions maximum to be free recorded
  • Impulse counter up to 9999 signals from the process machine
  • Free access under the unit
  • Plug in frame connection attachment
  • Test function on control for the position setting prior to automatic start
  • Automatic return to fill position in case of unintentional movement
  • 1ph 240v power supply
  • Stainless steel chutes
  • Optional clear perspex cover for chute

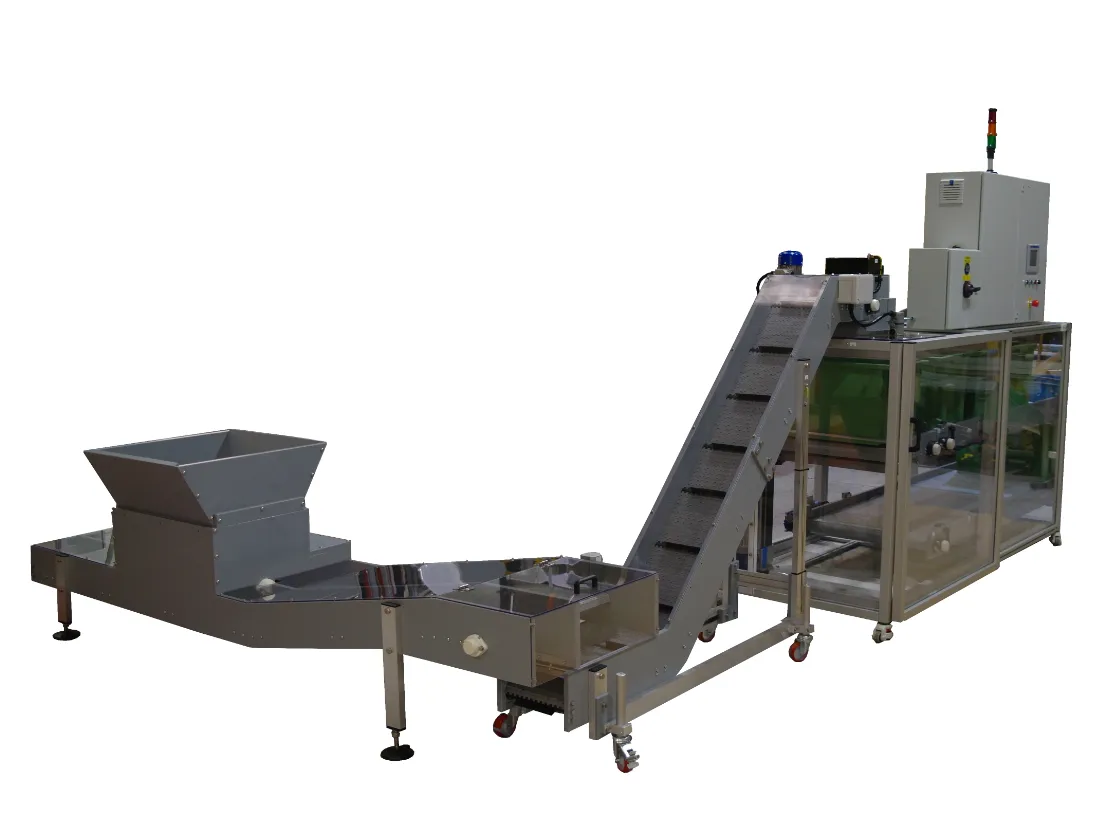

Product Counting with End of Line Weight Scale

  • Simple target count set up
  • 20kg max tote weight
  • 1ph 240v power supply
  • Conveyors designed to suit application

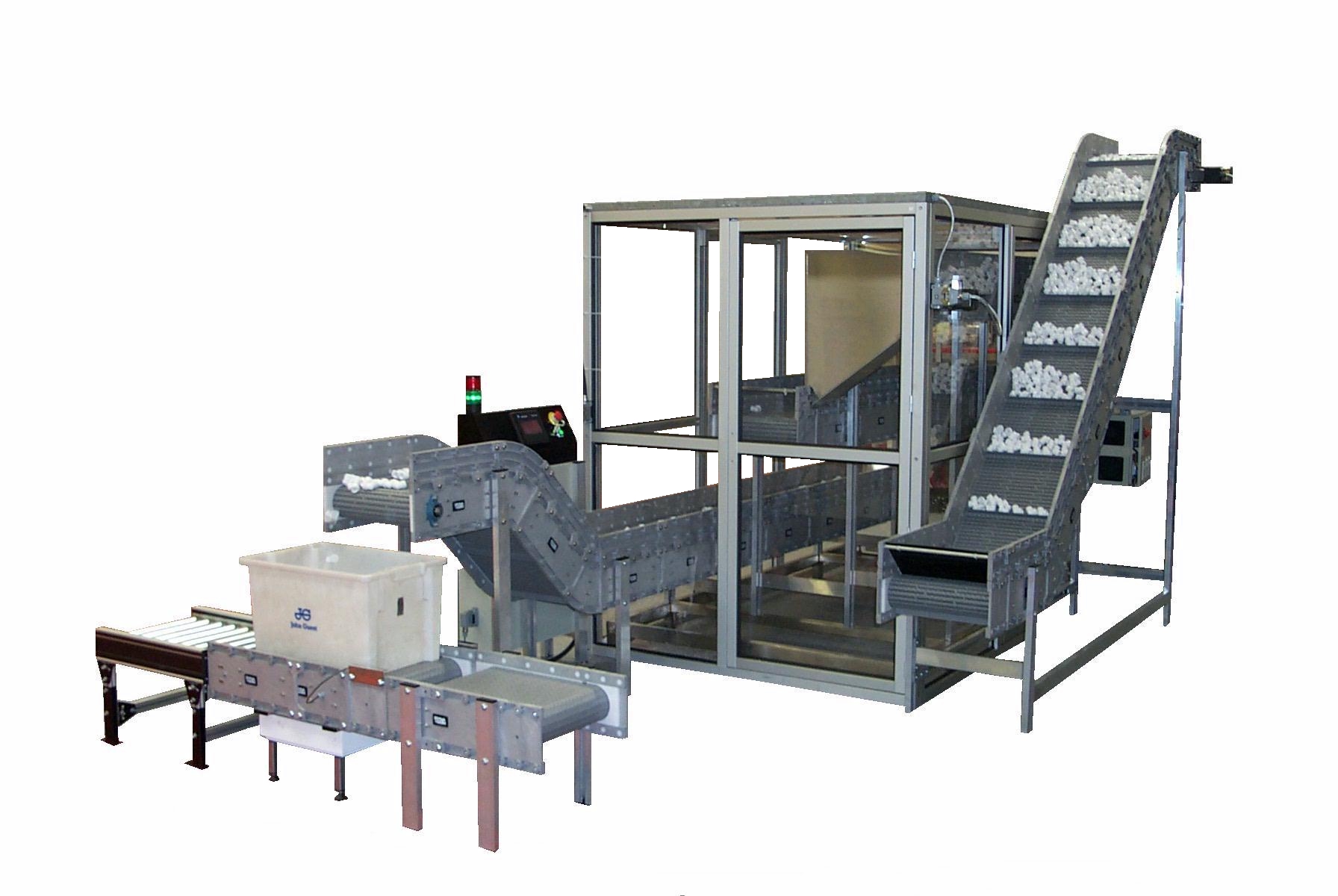

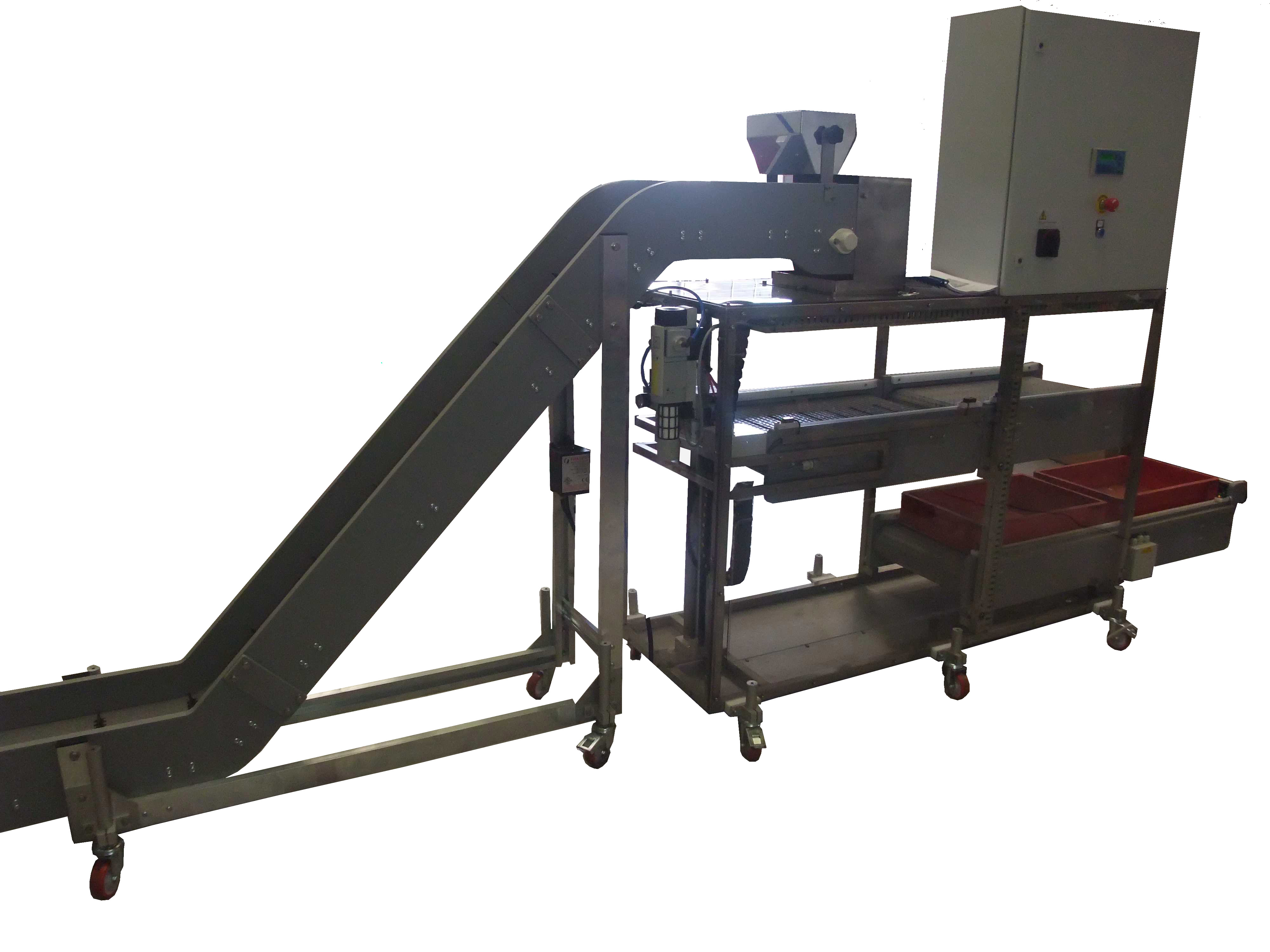

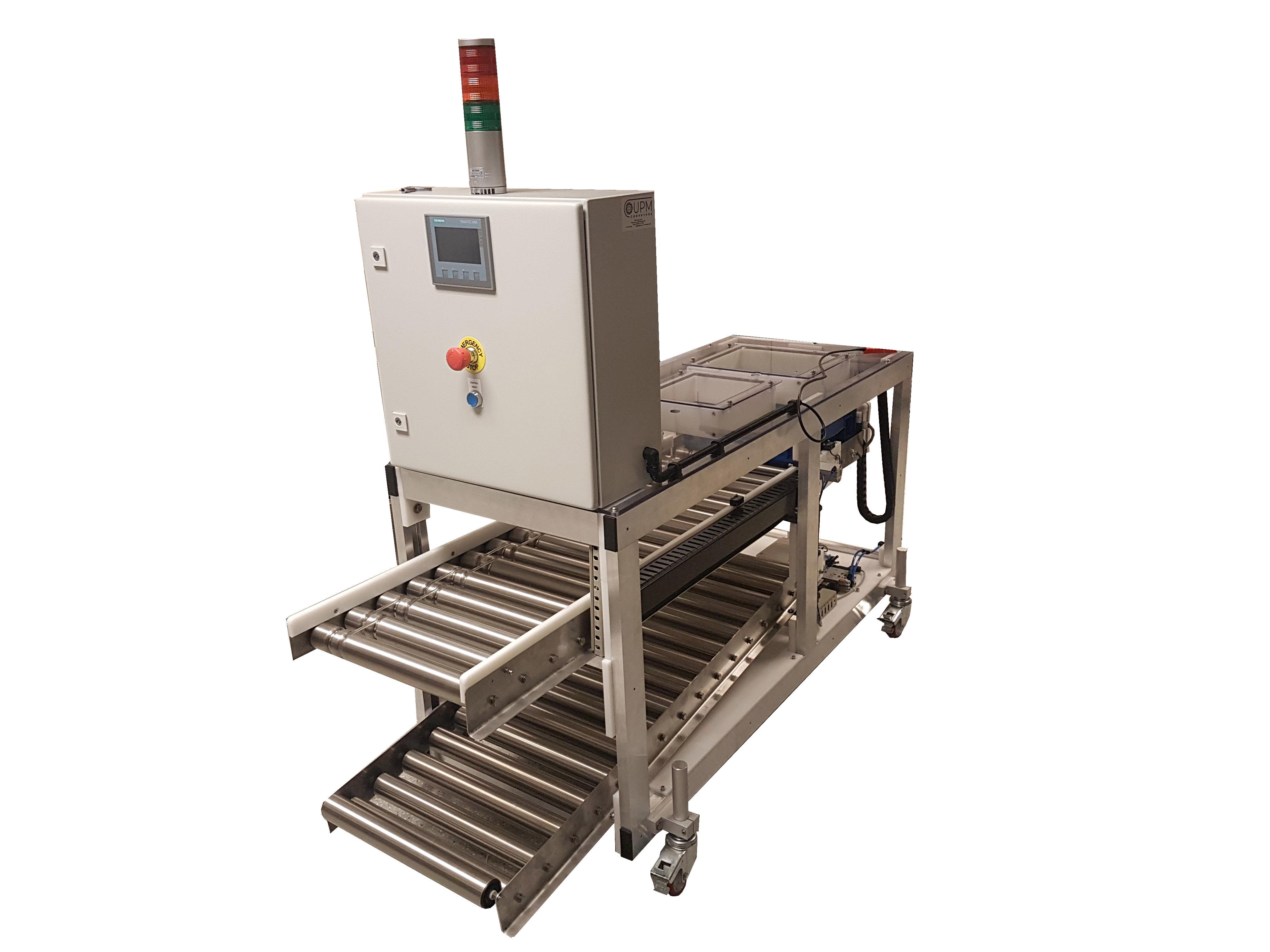

Vertical Tote Filling System

The example shown is for the unattended production by virtue of the vertical tote accumulation system, which was developed by UPM and incorporates static removal with air ionisers, CAT 3 safety Pilze relay, short circuit current rating, KA rated and UL listed components, Allen Bradley inverter drives and PLC Control. This allows the system to be completely interfacted to the injection moulding machine.

A UPM auto reject divert flip flap is located in the well of the machine, linked to the control so any change in process parameters reject product to the rear of the press. This allows only acceptable product to be transferred out to the product count for discharge to tote boxes for automatic accumulation. Operating 24/7 with only one operator responsible for multiple machines, these systems have now been exported to USA, Brazil, Mexico, Poland, Germany, India and Russia.
